The three speed slide control is located on the underside of the machine for easy access and control. The range hood cannot be seen from eye-level, allowing you to arrange your cabinets as though there were no fan, creating a fluid and classy look. Machine washable mesh filters efficiently filter the air while bright halogen light bulbs provide all the illumination you’ll need. Another innovative design unique to Cyclone.
Features:

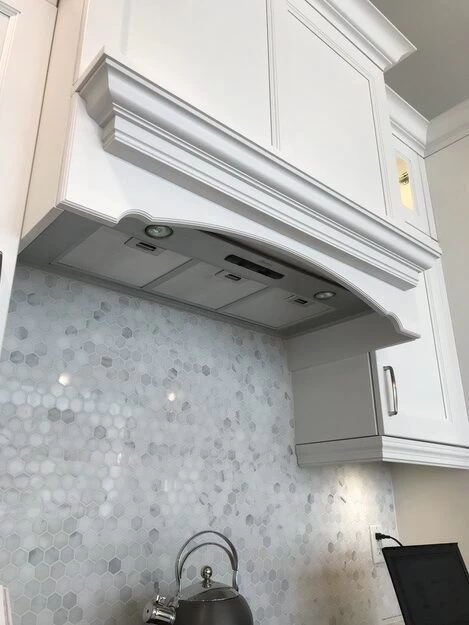

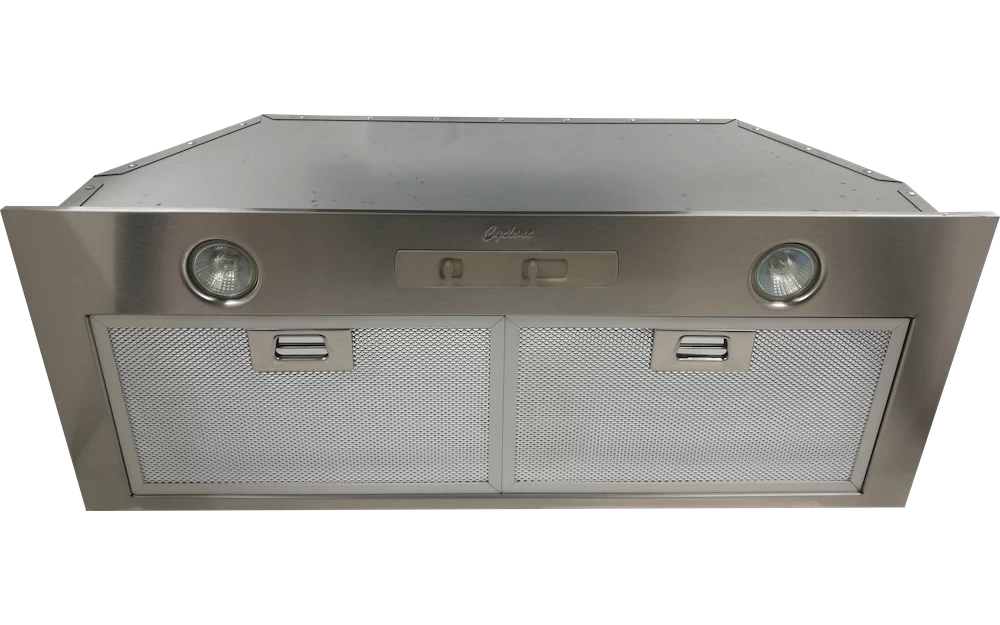

- Insert range hood
- 6’’ round duct adapter
- Non-stick aluminum fan blades

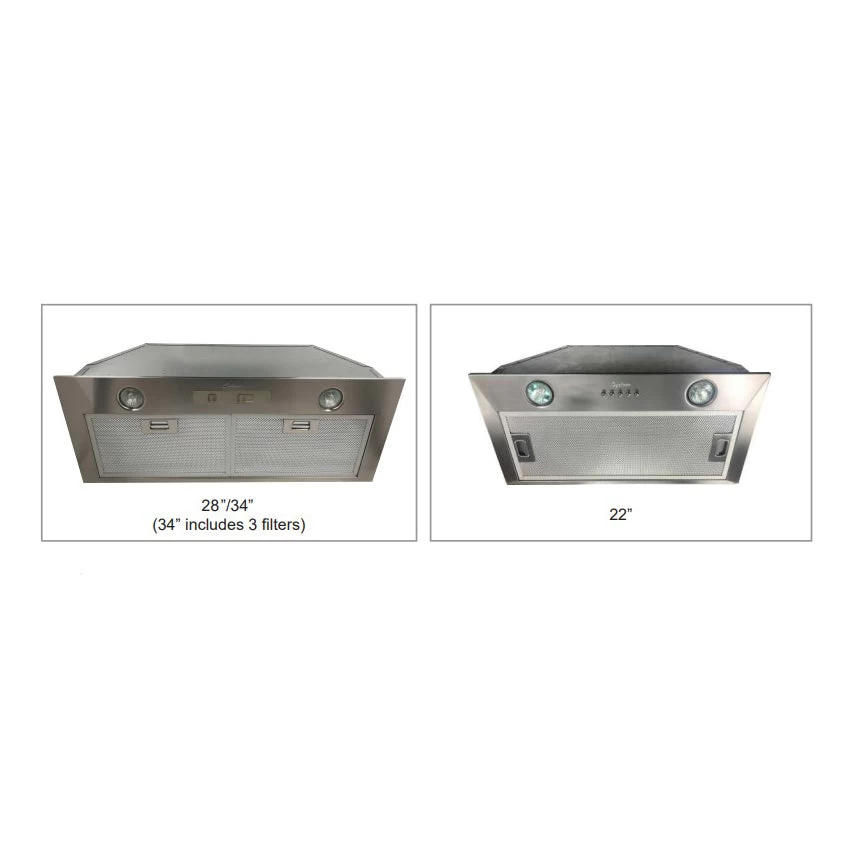

- 3 speed push button control for 22”
- 3 speed slide control for 28” and 34”
- Quick release aluminum mesh filters
- 2 halogen light bulbs (2 x 25W E26)
- Plug-in connection
Green Features:
3 Speed Push Button Control Panel
3 Speed Slide Control Panel (28″/34″ Only)
Halogen Light Bulbs
Grease Cup (28″/34″ Only)
| Product Information | |
|---|---|
| Air Flow Volume: | 300 CFM |
| Electrical Connection: | 120V/60Hz |
| Power Consumption: | 200 Watts |
| Current: | 1.8 Amps |
| Fan Speed: | 1350 RPM |
| Fan Type: | Centrifugal Blower |
| Finishes: | Stainless Steel |
| Ducting: | 6” Round |
| Dimensions: | Width: 33 ⅞″ Height: 10 ¼” Depth: 14 ⅛″ |
| Noise Level | Min. 2 Sones Max. 4 Sones |
