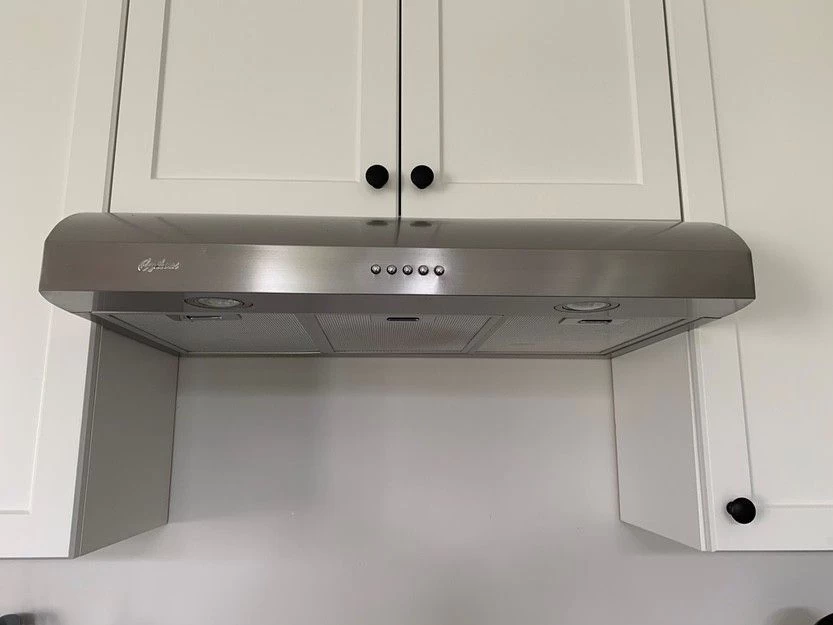

Cyclone is proud to introduce the sleek and tasteful CY917. Enjoy a modern style fan without the fuss of a renovation. Features a single, centered fan that boasts 300 CFM of power. Elegant mesh filters are a breeze to remove and replace. A powerful machine in a small frame, well-suited to any size living space.
Features:
- Undermount range hood
- 3 ¼” x 10” rectangular damper
- Non-stick aluminum fan blades
- 3 speed push button control
- 2 LED light bulbs (2 x 1.5W GU10, 3000K)
- Aluminum mesh filters
- Hard-wire connection
Green Features:
3 Speed Push Button Control Panel
Long-Lasting LED Lights
Grease Ring
| Product Information | |
|---|---|
| Air Flow Volume: | 300 CFM |
| Electrical Connection: | 120V/60Hz |
| Power Consumption: | 200 Watts |
| Current: | 1.8 Amps |
| Fan Speed: | 1350 RPM |
| Fan Type: | Axial Blower |

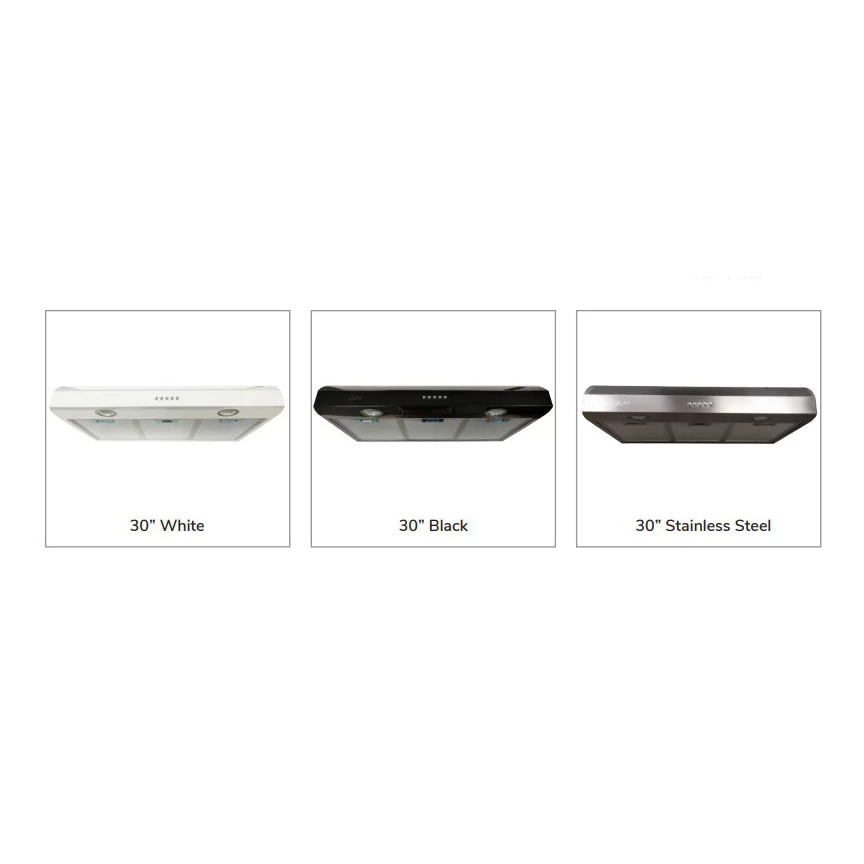

| Finishes: | White, Black, Stainless Steel |
| Knock-out: | 3 1/4″ x 10″ Rectangular (Top or Rear) |
| Ducting: | 6” Round |
| Dimensions: | Width: 29 ¾″ Height: 6” Depth: 19 ¼″ |
| Noise Level | Min. 2 Sones Max. 4 Sones |

Spec Sheet
Installation
Dimensions
