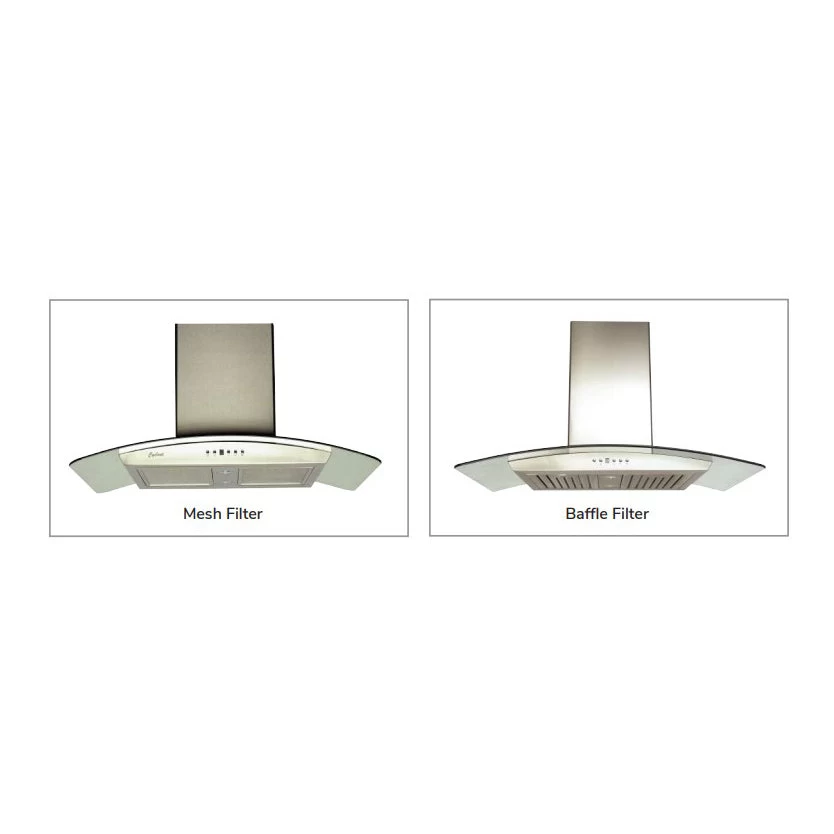

This Unit Comes With Baffle Filters

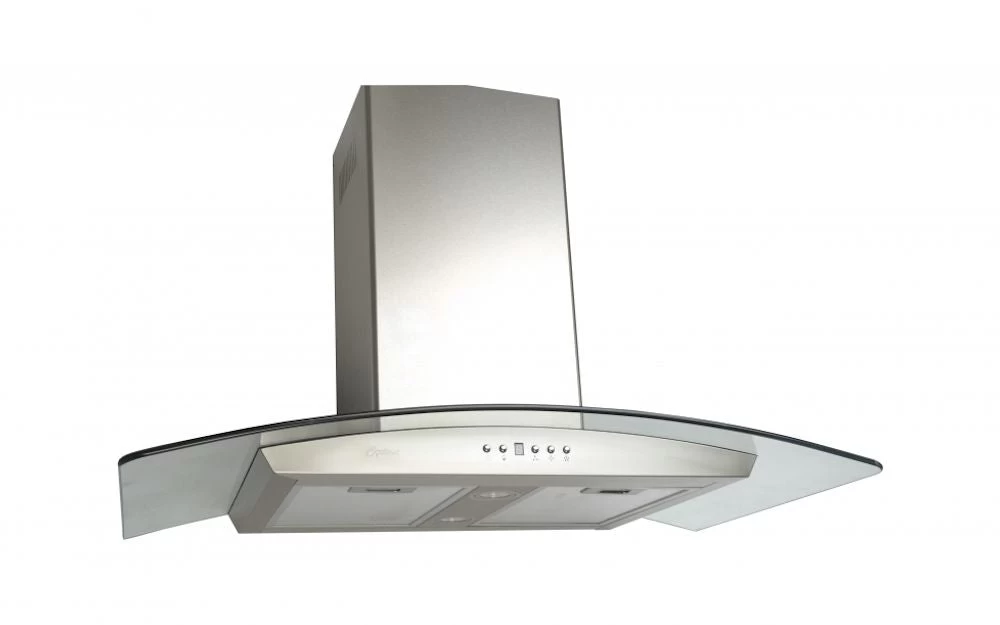

A very stylish exhaust fan, the SC(B)501 is the perfect balance of substance and style. The graceful contour of the arched glass canopy gives an impression that is at once both modern and classic. The hood features a three-speed digital control panel, two LED lights, two mesh or baffle filters and a quiet, efficient motor. Fitted with a time-delay OFF feature up to nine minutes.
Features:
- Wall mount range hood
- 6” round duct adapter
- Non-stick aluminum fan blades
- 3 speed push button control
- 2 LED lights (2 x 1.4W, 4000K)
- Quick release aluminum mesh filters
- Standard chimney fits up to 9 ft. ceiling
- Up to 9 minute time-delay OFF feature
- Plug-in connection
Green Features:
3 Speed Push Button Control Panel
Long-Lasting LED Lights
Time-Delay OFF Feature
Grease Cup
| Product Information | |
|---|---|
| Air Flow Volume: | 550 CFM |
| Electrical Connection: | 120V/60Hz |
| Power Consumption: | 240 Watts |
| Current: | 2.0 Amps |
| Fan Speed: | 1599 RPM |
| Fan Type: | Centrifugal Blower |
| Finishes: | Stainless Steel |
| Ducting: | 6” Round |
| Dimensions: | Width: 30” Height: 44 ½” Depth: 19 ¾” |
| Noise Level | Min. 2 Sones / Max. 6 Sones |

Spec Sheet
Installation
Use and Care Guide
Dimensions
















Reviews
There are no reviews yet.
